2850 Control Valve
Lead-free brass, 46 GPM continuous flow.
View Details

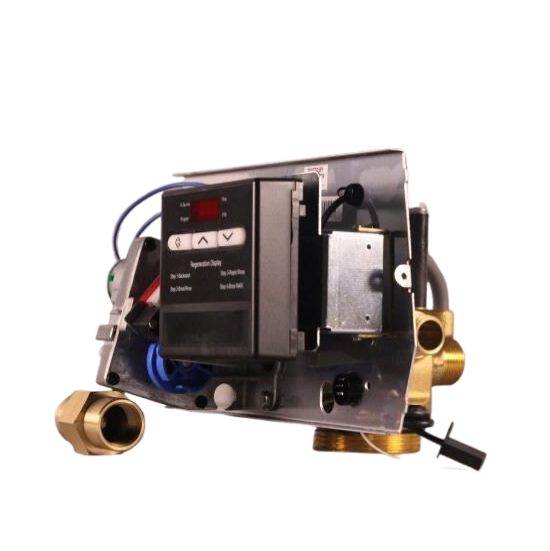

The 2750 Control Valve features a lead-free brass valve body for superior strength and durability in residential and light commercial applications.
● Lead-free brass valve body for superior strength and durability;
● Continuous service flow rate of 26 GPM with a backwash of 25 GPM;
● Backwash capability accommodates softener tanks up to 30" and filter up to 21" in diameter;
● Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment;
● Time-tested, hydraulically-balanced piston for service and regeneration;
● Rugged-built electromechanical timer designed with heavy duty 3/8" wide plastic gears.
| Valve Material | Lead-free brass |
|---|---|
| Inlet/Outlet | 1" NPTM/BSPM |
| Cycles | 3 or 5 |
| Continuous Flow Rate (15 psi drop) | 26 GPM (5.9 m³/h) |
| Peak Flow Rate (25 psi drop) | 33 GPM (7.5 m³/h) |
| Cv (flow at 1 psi drop) | 6.8 |
| Max. Backwash (25 psi drop) | 25 GPM (5.7 m³/h) |
| Downflow/Upflow | Downflow only |
| Adjustable Cycles | Yes |
| Distributor Pilot | 1.05" O.D. (26.7 mm) |
| Drain Line | 3/4" NPTM |
| Injector System | 1600 or 1700 |
| Mounting Base | 2.5"– 8 NPSM |
| Height from Top of Tank | 6.5" (165 mm) |
