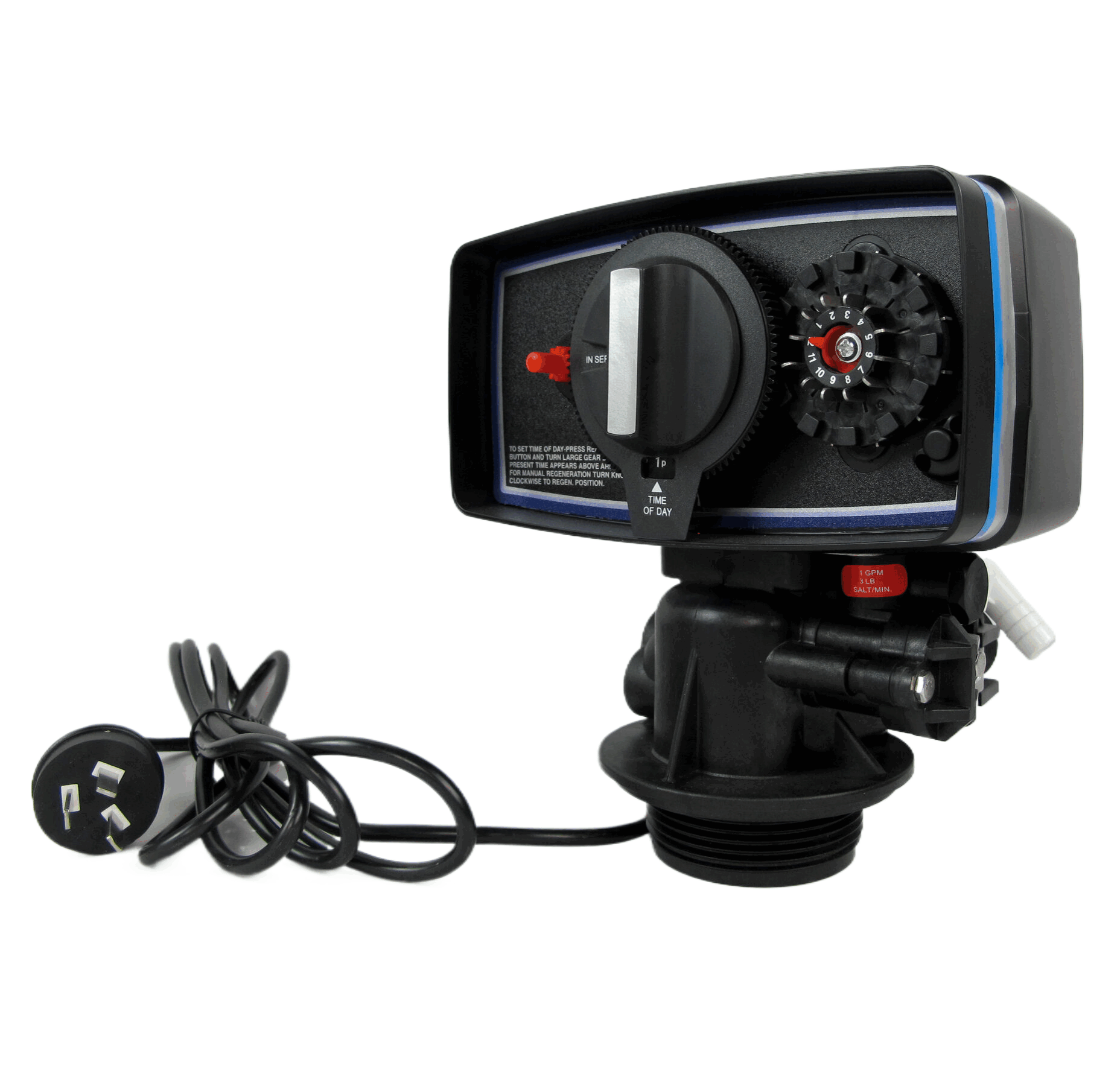

The 5600 Control Valve is a mechanical control valve designed for residential and light commercial water softening applications.
● Simple mechanical design is easy to use;
● Two valve body designs: one for downflow regeneration and one for upflow (covers every valve in the 5600 family - quick access to all internal components);
● Injector/drain modules containing the brine valve, flow controls, and injector are removable from the valve's exterior;
● Ruggedly-built timer is designed with heavy-duty 3/8" wide plastic gears;
● 5600 controls are user-friendly;
● Non-corrosive, UV-resistant, fiber-reinforced polymer valve body;
● Economical - small annual power consumption; keeps the time and activates the piston/valve mechanics with a single motor;
● Designed with double backwash.
| Valve Material | Fiber-reinforced polymer |
|---|---|
| Inlet/Outlet | 3/4", 1", 1-1/4" |
| Cycles | 7 |
| Continuous Flow Rate (15 psi drop) | 20 GPM |
| Peak Flow Rate (25 psi drop) | 26 GPM |
| Cv (flow at 1 psi drop) | 5 |
| Max. Backwash (25 psi drop) | 7 GPM |
| Downflow/Upflow | Both |
| Adjustable Cycles | Brine fill only |
| Time Available | 180 minutes per cycle |
| Distributor Pilot | 13/16" or 1.05" O.D. |
| Drain Line | 1/2" NPTF |
| Injector Brine System | 1600 |
| Brine Line | 3/8" |
| Mounting Base | 2-1/2"-8 NPSM |
| Height from Top of Tank | 7" |
