2850 Control Valve
Lead-free brass, 46 GPM continuous flow.
View Details

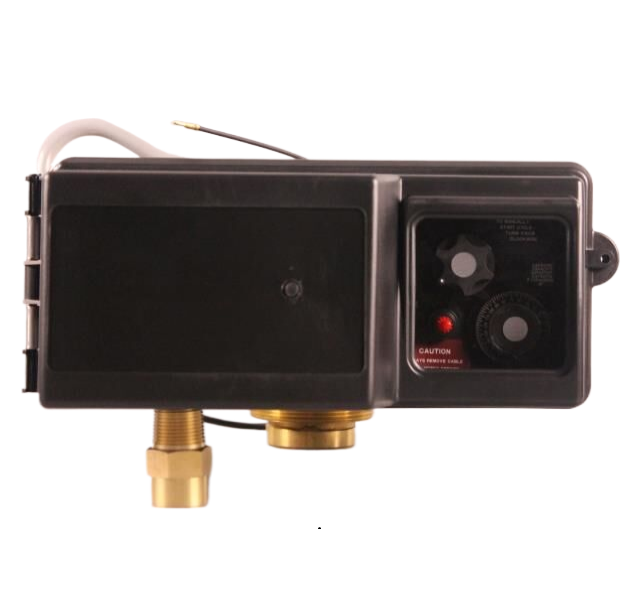

The 3150 Control Valve features a lead-free brass valve body for superior strength and durability, designed for high-capacity commercial water treatment applications.
● Lead-free brass valve body for superior strength and durability;
● Continuous service flow rate of 95 GPM with a backwash of 105 GPM;
● Backwash capability accommodates softener tanks up to 63" and filter up to 42" in diameter;
● Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment;
● Designed for single or multiple tank systems;
● Environmental protective cover for water resistance, corrosion resistance, and UV stability;
● Time-tested, hydraulically-balanced piston for service and regeneration;
● Rugged-built electromechanical timer designed with heavy duty 3/8" wide plastic gears.
| Valve Material | Lead-free brass |
|---|---|
| Inlet/Outlet | 2" NPTF/BSPF |
| Cycles | 3 or 5 |
| Continuous Flow Rate (15 psi drop) | 95 GPM (21.6 m³/h) |
| Peak Flow Rate (25 psi drop) | 124 GPM (28.2 m³/h) |
| Cv (flow at 1 psi drop) | 24.8 |
| Max. Backwash (25 psi drop) | 105 GPM (23.8 m³/h) |
| Downflow/Upflow | Both |
| Adjustable Cycles | Yes |
| Electromechanical Timer | 0-164 min/regeneration |
| NXT Timer | 0-240 min/cycle |
| XT Timer | 0-240 min/cycle |
| Distributor Pilot | 2.375" O.D. (63 mm) |
| Drain Line | 2" NPTM |
| Injector Brine System | 1600 or 1700 |
| Mounting Base | 4"- 8 UN |
| Height from Top of Tank | 10" (254 mm) |
