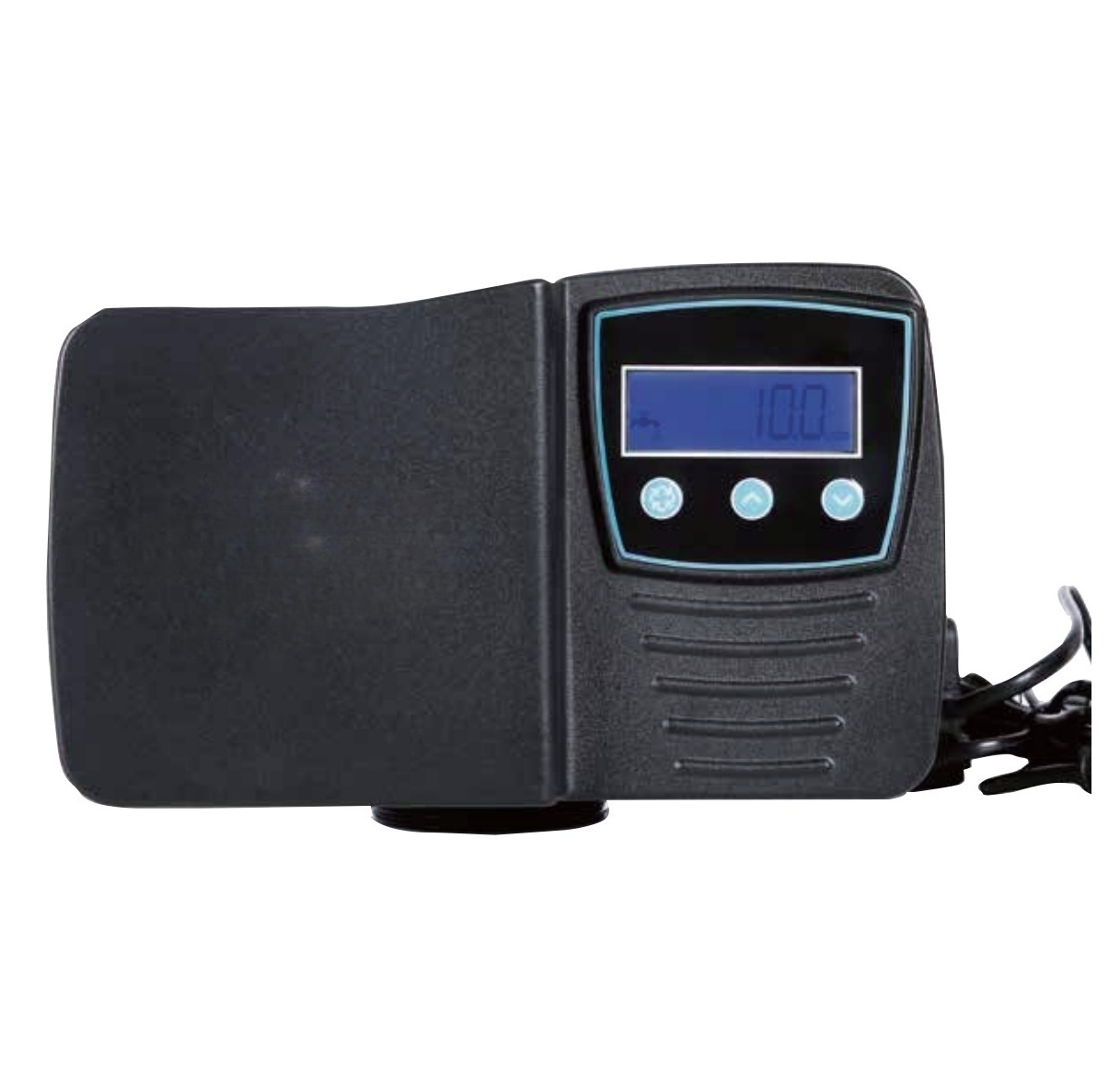

The 7000 Control Valve features a fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant.
● Fiber-reinforced polymer valve body for superior strength and durability;
● Continuous service flow rate of 28 GPM with a backwash of 7 GPM;
● Backwash capability accommodates softener tanks up to 24" and filter up to 24" in diameter;
● Fully adjustable up to 6 cycles control for efficient and reliable water treatment;
● Super capacitor for keeping time of day during power outage;
● Environmental protective cover for water resistance, corrosion resistance, and UV stability;
● Time-tested, hydraulically-balanced piston for service and regeneration;
● Rugged-built electromechanical timer designed with heavy duty 3/8" wide plastic gears.
| Valve Material | Fiber-reinforced polymer |
|---|---|
| Inlet/Outlet | 1", 3/4" |
| Cycles | Up to 6 |
| Continuous Flow Rate (15 psi drop) | 4.3 m³/h (28 GPM) |
| Peak Flow Rate (25 psi drop) | 5.4 m³/h (35 GPM) |
| Cv (flow at 1 psi drop) | 5 |
| Backwash Flow (25 psi drop) | 17 GPM |
| Downflow/Upflow | Downflow only |
| Adjustable Cycles | Yes |
| Distributor Pilot | 1.05" O.D. (26.7 mm) |
| Drain Line | 3/4" or 1" NPTM |
| Injector System | 1610 |
| Mounting Base | 2.5"– 8 NPSM |
| Height from Top of Tank | 9" (228 mm) |
| Power Backup | Super capacitor |
