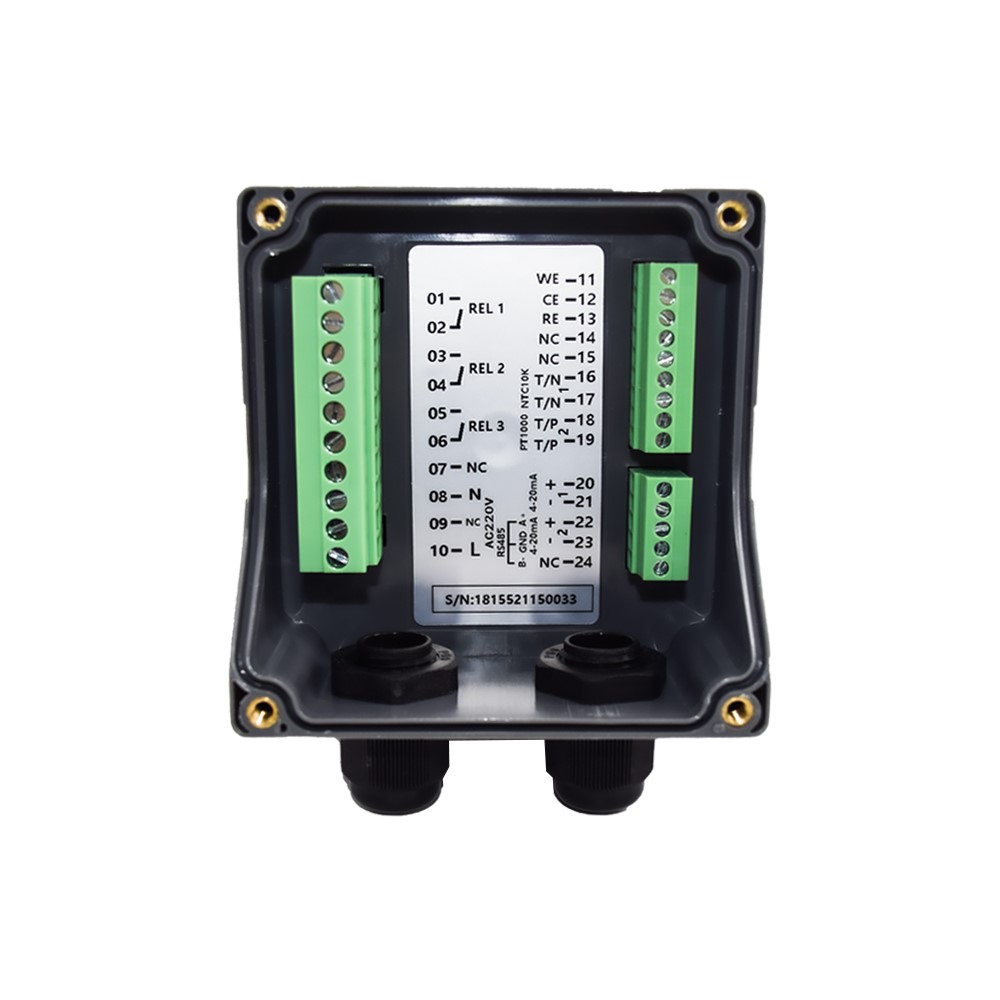

CL-9650 Residual Chlorine Analyzer
Online intelligent residual chlorine controller with pH monitoring.
View Details
CL-9500 industrial online residual chlorine analyzer is a brand-new residual chlorine water quality analyzer. It is highly intelligent and flexible, capable of simultaneously measuring residual chlorine and temperature. It is widely used in municipal sewage treatment plants, power plants, water supply systems, pharmaceuticals, chemical engineering, food processing, and other industries for continuous measurement of residual chlorine in water.
• Multi-language support: Standard Chinese interface upon delivery, switchable to an English interface;
• Temperature compensation options: Three temperature compensation methods: PT1000, NTC10K, and manual;
• 4-20mA output: Utilizes isolation technology for strong anti-interference capability;
• Three relay groups: High and low setpoints can be freely switched, with adjustable hysteresis;
• Password management function: Prevents accidental operations by non-professionals.
| Model | CL-9500 |
|---|---|
| Name | CL-9500 Residual Chlorine Analyzer |
| Range | Free chlorine: 0-10.00 mg/L; Hypochlorous acid (HOCl): 0-10.00 mg/L; Temperature: 0-50℃ |
| Accuracy | Free chlorine: ±0.1 mg/L; HOCl: ±0.01 mg/L; Temperature: ±0.1℃ |
| Temp. Compensation | Automatic compensation |
| Operating Temp. | 0~50℃ |
| Sensor | Residual chlorine sensor |
| Current Output | Isolation 4-20mA |
| Power Supply | AC 110V±10% 50/60Hz; AC 220V±10% 50/60Hz |
| Control Output | High/Low limit relay |
| Dimensions | 96×96×132mm (H×W×D) |
| Working Environment | Ambient temp: 0~50℃, Relative humidity ≤85% |
| Hole Size | 92×92mm (H×W) |
| Installation Mode | Embedded |
