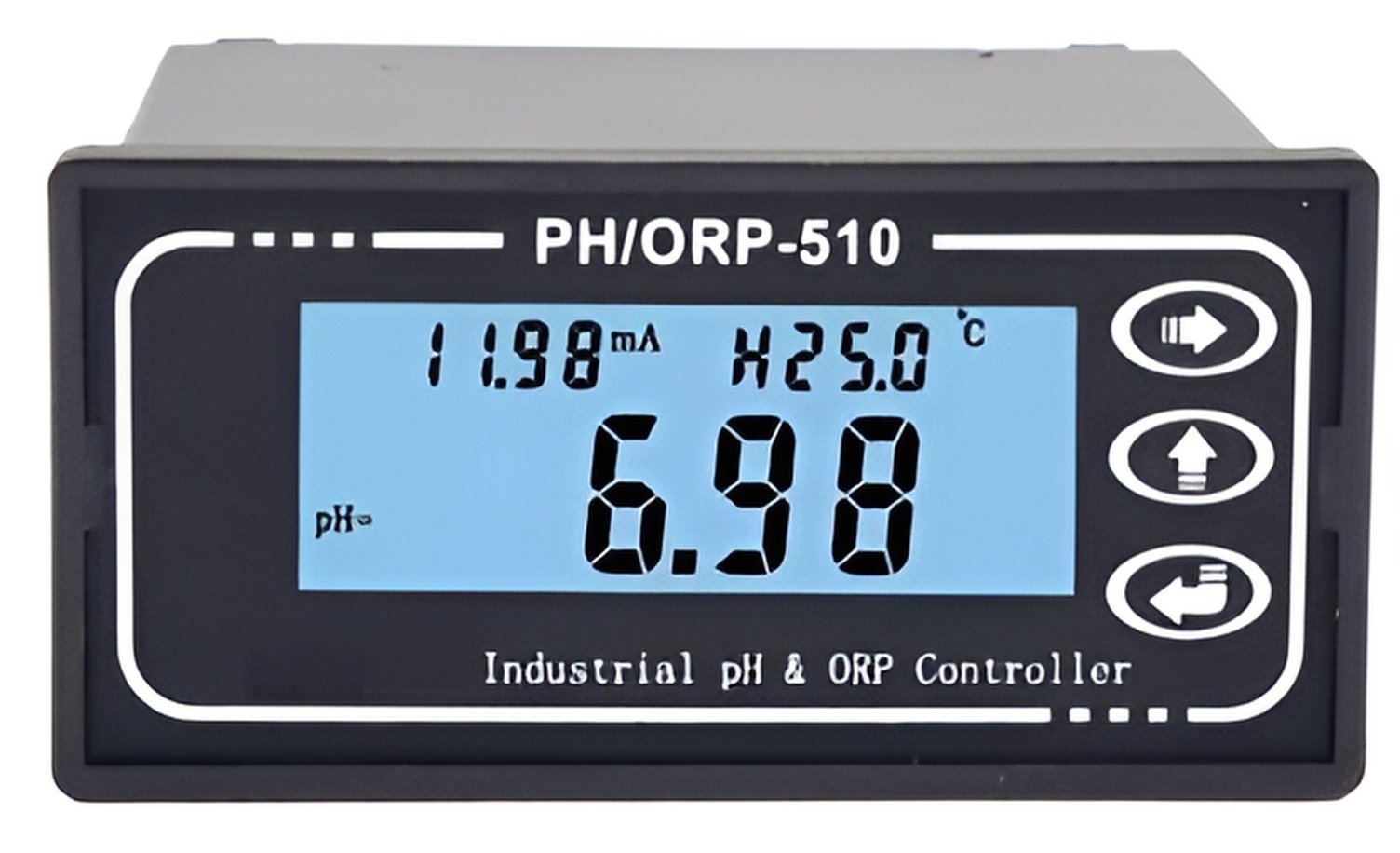

pH/ORP-510 pH/ORP Meter
General-purpose, cost-effective online pH/ORP monitoring instrument.
View Details
Industrial pH meter is an intelligent upgrade product of industrial acidity meter, which can continuously measure and control the pH value of sewage, and this device is suitable for urban sewage treatment plants, chemical industry, printing and dyeing, papermaking, pharmaceutical, electroplating and environmental protection and other fields.
According to the environment and characteristics of the water industry, combined with the international power supply standards, the electrical design specifications for special environments are considered, and 220V AC and safe low-voltage 24V AC and 24V DC power supply options are added.
| Model | pH/ORP-1800 |
|---|---|
| Name | pH/ORP-1800 pH/ORP Meter |
| Measuring Range | pH: 0~14 pH; ORP: -2000mV~2000mV |
| Accuracy | pH: 0.02; ORP: ≤±1mV (electronic unit) |
| Support Buffer Solution | pH: 4.00/6.86/9.18 or 4.01/7.00/10.00 |
| Medium Temp. Compensation | 0–100°C Manual/Automatic (NTC10K) |
| Signal Output | 4-20mA or RS485 |
| Control Output | High/Low limit dual relay control |
| Power Supply | AC 220V or DC24V |
| Working Condition | Ambient temp: 0～50℃, Relative humidity ≤85% |
| Calibration Method | 3-point calibration |
| Meter Size | 96×96×110mm (H×W×L) |
| Hole Size | 92×92mm (H×W) |
| Installation Mode | Embedded |
