BSQ-2019
Water quality transmitter for pH/conductivity.
View Details
EC/ER/pH series transmitter is mainly used for water quality monitoring sensor signal transmission, through 4-20mA, RS485 or TTL level to amplify the weak signal output from the sensor.
• Communication protocol using standard MODBUS RTU protocol;
• Widely used in metallurgical manufacturing, electric power, light industry, textile, water treatment equipment;
• One transmitter module can only be adapted to one electrode input;
• EC and pH modules have the same appearance but different hardware.
| Model | BSQ-Mini |
|---|---|

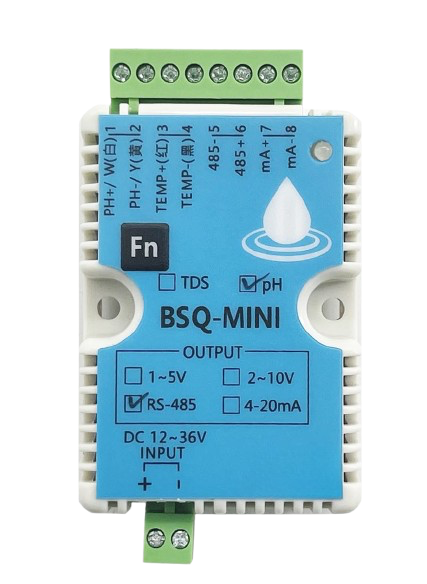

| Name | BSQ-Mini Water Quality Transmitter |
| EC Range | 0~2000us/cm; optional 0-4000uS, 0-10.00mS, 0-20.00mS, 0-200.0mS |
| ER Range | 0~18.2MΩ |
| pH Range | 0~14.00 pH |
| Output Current | 4-20mA / optional: 1-5V / 2-10V |
| Relay Output | Settable high/low limit relay alarm |
| Power Supply | DC12V-28V |
| Dimensions | 122×72×45mm (L×W×H) |
| Mounting | Rail mounting |
