pH/ORP-8851
General-purpose pH/ORP meter.
View Details

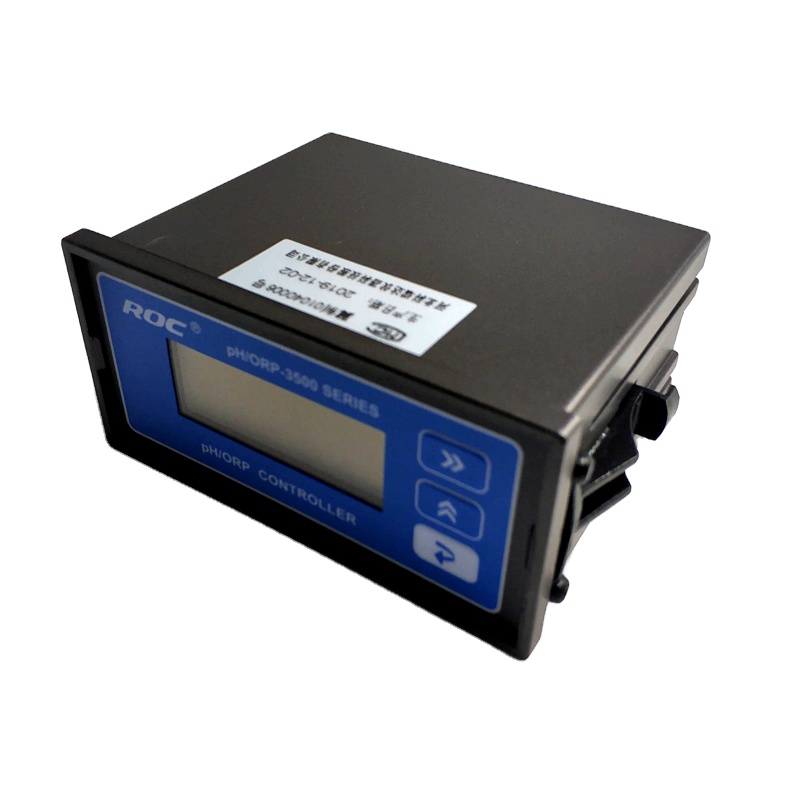

pH/ORP-3500 series is a popular and cost-effective online pH and ORP controller, with plug-in pH/ORP-1220 sensor, which has good measurement accuracy, anti-interference, easy to install and operation features.
● White backlight LCD screen, several operations, easy for operation;
● Compatible for six kinds of buffer solution (10.00, 9.18, 7.00, 6.86, 4.00, 4.01);
● Selectable temperature sensor which reduces the replacement cost;
● Manual calibration is easy for on-site calibration;
● EMC enhancement type could run smoothly under various industrial environments;
● (4~20)mA output supports instrument/transmitter modes;
● Double relay high/low and delay control function;
● Multi power supply, DC/AC power input, no polarity connection;
● Compact quick installation with short cabinet; CE certification.
| Model | pH/ORP-3500 |
|---|---|
| Type | Online pH/ORP Controller |
| Compatible Buffer Solutions | 10.00, 9.18, 7.00, 6.86, 4.00, 4.01 |
| Temperature Sensor | Selectable (Outlay design) |
| Display | White backlight LCD |
| Signal Output | Isolated (4-20)mA output |
| Output Mode | Dual mode: Instrument/Transmitter |
| Control Output | Double relay (High/Low limit + Time-delay) |
| EMC Design | Optimal electromagnetic compatibility |
| Power Supply | Multi power supply, DC/AC input, no polarity |
| Installation | Compact quick installation |
| Certification | CE |
