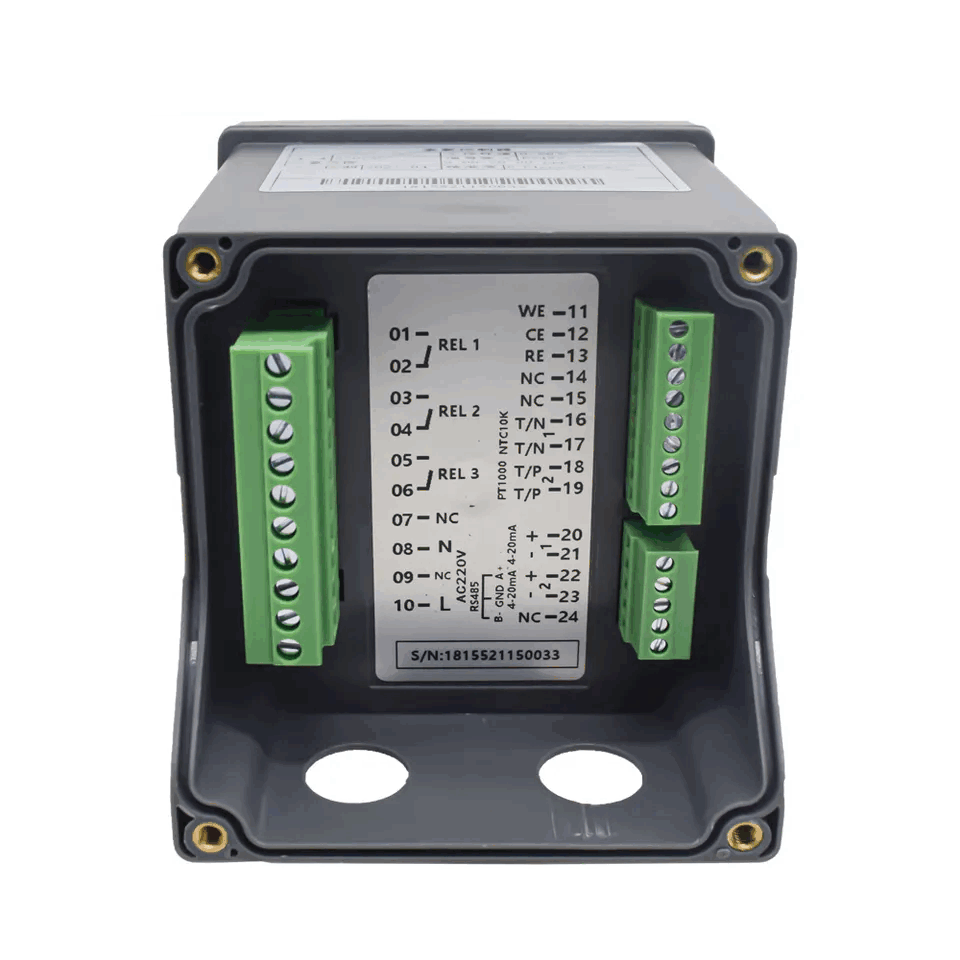

pH/ORP-9900
Advanced pH/ORP controller.
View Details
This industrial pH water quality automatic analyzer is a new pH analyzer with high intelligence and flexibility, capable of measuring pH/ORP and temperature simultaneously. Widely used in urban sewage treatment plants, electric power, water supply, medicine, chemical, food and other industries.
● Diverse languages: Factory standard Chinese interface, switchable to English interface;
● Various temperature compensation modes: PT1000, NTC10K and manual temperature compensation;
● 4-20mA output using isolation technology with strong anti-interference ability;
● Three groups of relays with high/low points switchable, adjustable hysteresis;
● Password management function to prevent misoperation by non-professionals;
● Menu prompt function greatly facilitates user operation.
| Model | pH/ORP-9500 |
|---|---|
| Measuring Range | pH: 0~14 pH; ORP: -2000mV~2000mV |
| Accuracy | pH: 0.01; ORP: ≤±1mV (electronic unit) |
| Buffer Solution Support | pH: 4.00/6.86/9.18 or 4.01/7.00/10.00 |
| Temperature Compensation | PT1000, NTC10K |
| Signal Output | 4-20mA & RS485 |
| Control Output | High/Low limit + Temperature 3 relays control |
| Power Supply | DC24V or AC220V |
| Working Condition | Ambient temp: 0～50℃, Relative humidity ≤85% |
| Power Consumption | ≤7W |
| Dimensions | 96×96×132mm (H×W×D) |
| Hole Size | 92×92mm (H×W) |
| Installation Mode | Embedded |
