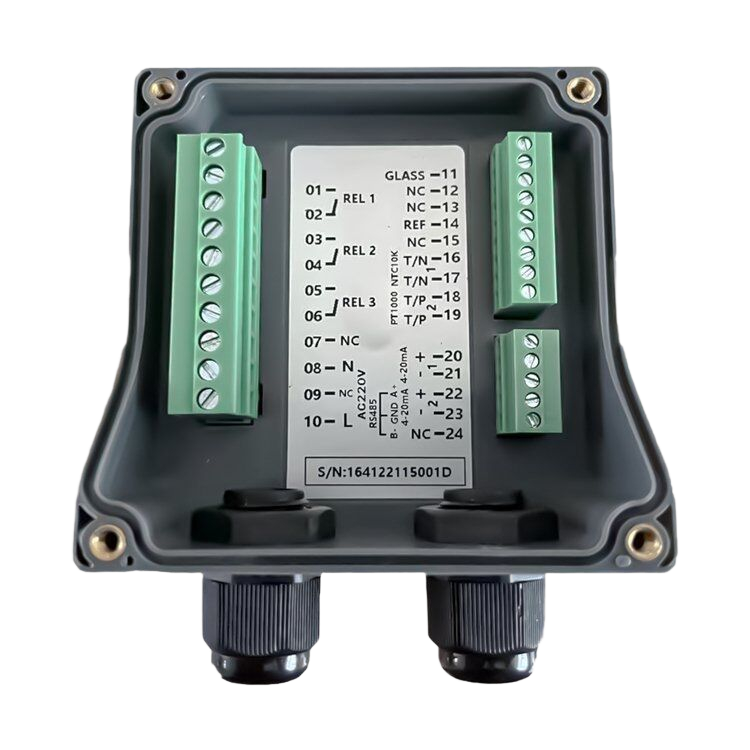

EC-9500 industrial online conductivity/resistivity measurement and control instrument, integrated with ARM MCU chip, signal measurement in the form of software automatic real-time tracking, to achieve intelligent instrument, so that the measurement accuracy and stability are further improved.
• Support both Chinese and English, PT1000, NTC10K and manual temperature compensation are available in three temperature compensation modes;
• Two 4-20mA outputs, corresponding to Conductivity/Resistance/TDS value and temperature, using isolation technology, strong anti-interference ability;
• The high and low points of the 3 sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid relays on and off frequently.
| Model | EC-9500 |
|---|---|
| Name | EC-9500 Conductivity/Resistivity Controller |
| Measuring Range | 0.05uS/cm – 200mS/cm; 0.00 MΩ·cm～20.00 MΩ·cm |
| Displaying Mode | LCD dot matrix display |
| Accuracy | ±0.01 uS/cm; ±1ppm |
| Resolution | 0.01uS/cm; 1ppm |
| Temperature Compensation | 0–120℃ Manual / Auto (PT1000/NTC10K) |
| Signal Output | 4-20mA isolation protection output, maximum load 500Ω |
| Alarm Output | 3 groups high and low point alarm (3A/250V AC), normally open contact relay |
| Waterproof | Yes |
| Power Supply | AC100-240V or DC24V |
| Power Consumption | ≤7W |
| Environmental Condition | Temperature 0~50℃; Humidity≤85% RH |
| Dimensions | 96×96×132mm (H×W×D) |
| Hole Size | 92.5×92.5mm (H×W) |
