BSQ-Mini
Compact water quality transmitter.
View Details
BSQ-2019 series transmitter mainly used for water quality monitor sensor signal output, by 4-20mA, RS485 or TTL.
• BSQ-2019: pH transmitter (0~14.00pH);
• BSQ-2019-EC3: 2 or 3 channels conductivity transmitter;
• Convenient for PLC, configuration software and SCM to communicate;
• Widely used in metallurgy, power, light industry, textile, water treatment.
| Model | BSQ-2019 / BSQ-2019-EC3 |
|---|---|

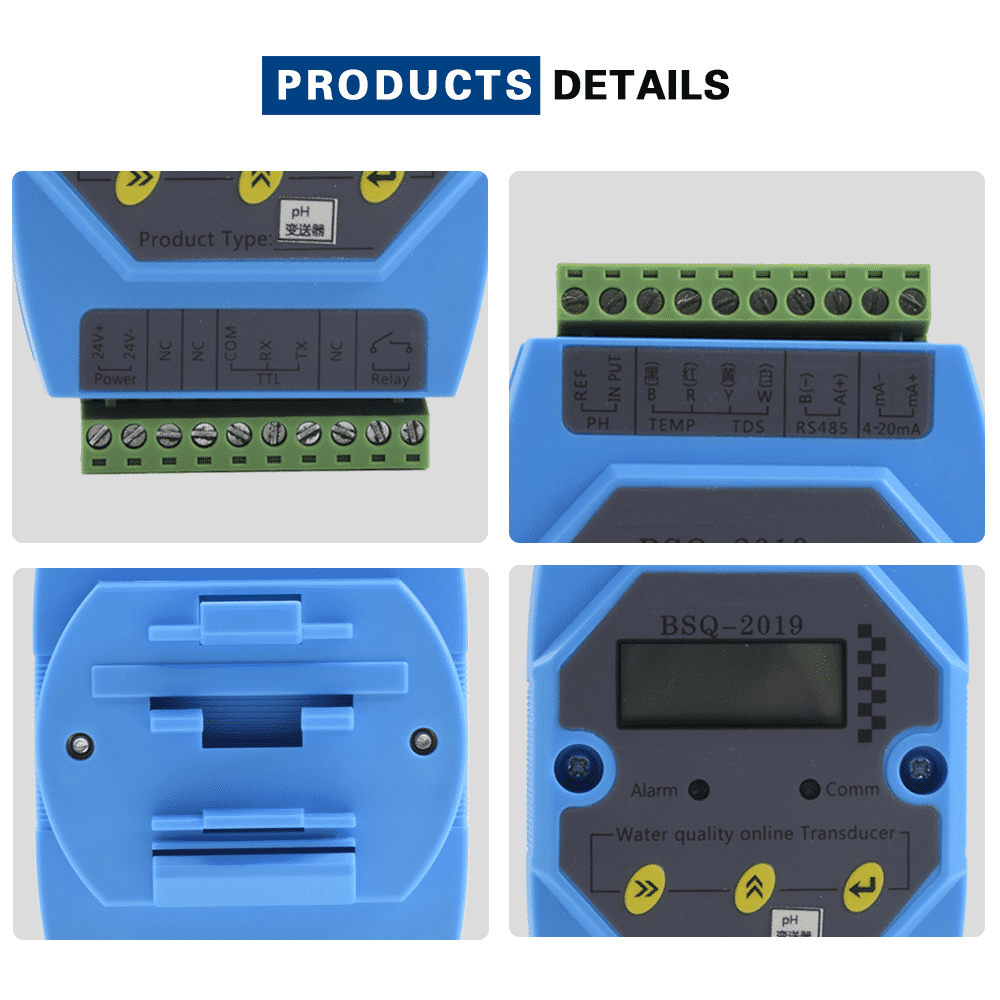

| Name | BSQ-2019 Water Quality Transmitter |
| BSQ-2019 Range | 0~14.00pH |
| BSQ-2019 Accuracy | ±0.1pH |
| BSQ-2019-EC3 Range | 0.1～18.25MΩ; 0.5～200mS |
| BSQ-2019-EC3 Accuracy | ±1.5%FS |
| Interface Type | Isolated 4-20mA RS-485/TTL relay output |
| Power Supply | DC24V/0.2A (12~36V) |
| Dimensions | 122×72×45mm (L×W×H) |
| Mounting | Rail mounting |
