EC-9900 Conductivity Controller
Industrial online conductivity/resistivity controller.
View Details
This instrument is a panel instrument for online monitoring of industrial process conductivity.
● Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel;
● Unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable;
● Features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free;
● It's an ideal auxiliary instrument of various types of small pure water equipment.
| Model | CM-230 |
|---|---|

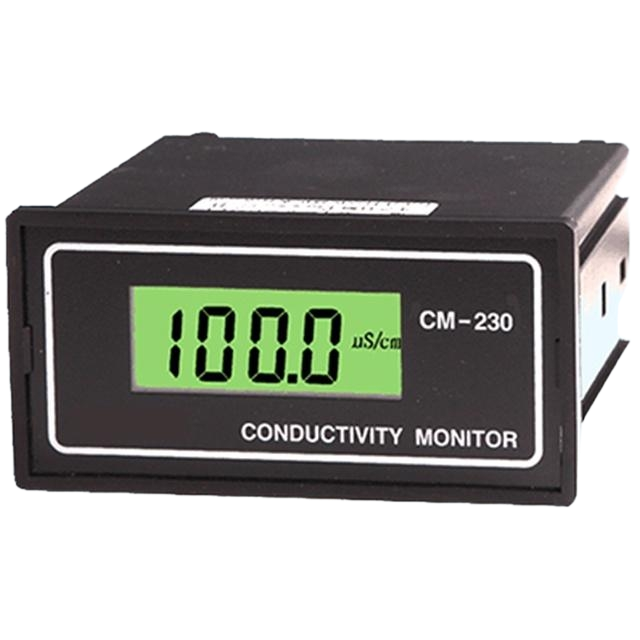

| Name | CM-230 Electrical Conductivity Meter |
| Measuring Range | 0~20/200/2000 ppm |
| Accuracy | 1.5% (FS) |
| Temp. Comp. | 25℃ basis, automatic temperature compensation |
| Operating Temp. | 0~50℃ |
| Sensor | 10cm⁻¹ |
| Display | 3 1/2 Bit LCD |
| Power | AC 110V±10% 50/60Hz; or AC 220V±10% 50/60Hz |
| Working Environment | Ambient temperature: 0~50℃; Relative humidity: ≤85% |
| Dimensions | 48×96×100mm |
| Hole Size | 45×92mm |
