EC-8850 Conductivity Meter
High-precision conductivity meter for pure water.
View Details
EC-9900 industrial online conductivity/resistivity measurement and control instrument, integrated with ARM MCU chip, signal measurement in the form of software automatic real-time tracking, to achieve intelligent instrument, so that the measurement accuracy and stability are further improved.
● This instrument can be adapted to a variety of conductivity electrodes: 0.01, 0.02, 0.1, 1.0, 10.0cm⁻¹ conductivity electrodes, the measurement range is from 18.25 MΩ (0.05 μS) to 100 mS (NTC10K is used for temperature compensation, which can achieve temperature measurement from 0 to 120 °C);
● This instrument is widely used in: water treatment equipment, environmental engineering, pharmaceutical, electronics, chemical industry, agricultural planting, aquaculture, scientific research institutes, electroplating, metallurgical manufacturing, mechanical processing and other industries.
| Model | EC-9900 |
|---|---|
| Name | EC-9900 Conductivity/Resistivity Controller |
| Measuring Range | 0.05～18.25 MΩ; 0～200mS/cm |
| Display Mode | Full view LCD Screen |
| Accuracy | 1.5%(FS) |
| Current Output Signal | 4-20mA, RS485 |
| Control Output Signals | High/Low limit dual relay control |
| Medium Temperature | Normal temperature electrode: 0~60°C; High temperature electrode: 0~120°C |
| Medium Pressure | Less than 0.5MPa |
| Temperature Compensation | 25°C as the benchmark, automatic compensation |
| Working Condition | Ambient temp: 0～50℃, Relative humidity ≤85% |
| Power Supply | AC 220V or DC24V |

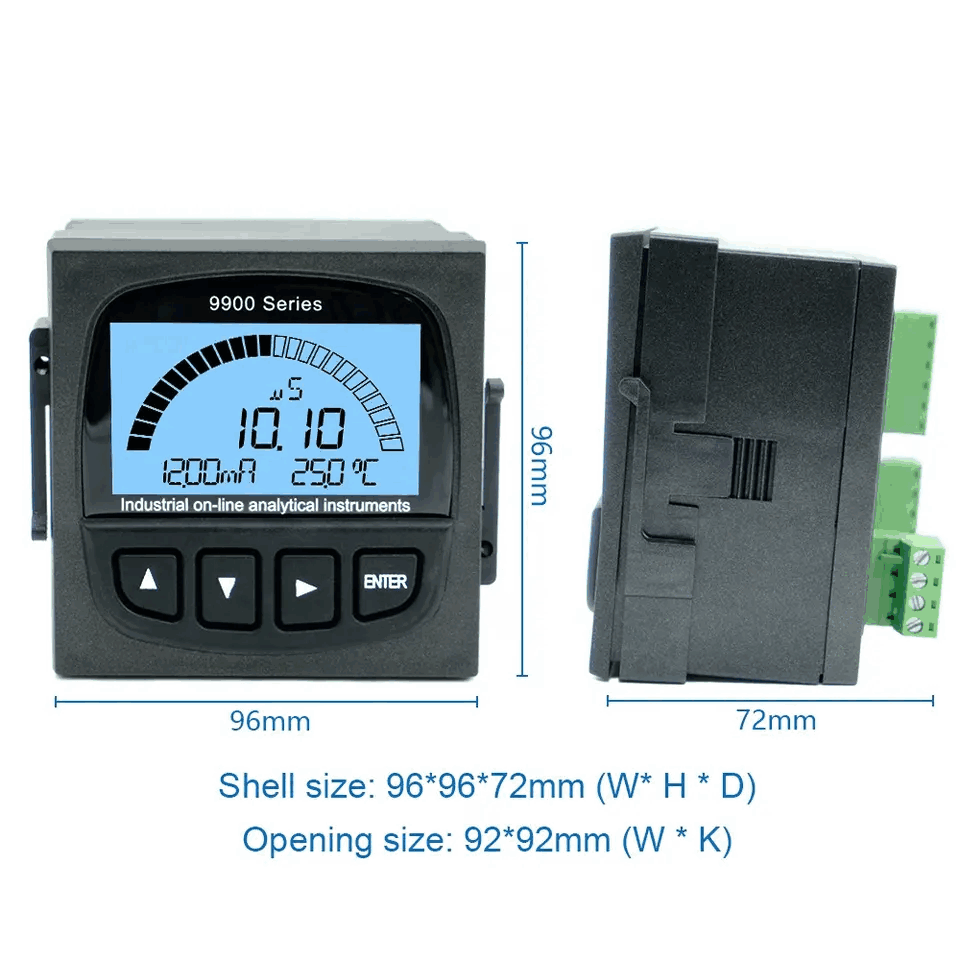

| Outline Dimension | 96×96×72mm (height×width×depth) |
| Hole Size | 92×92mm (height×width) |
| Installation | Embedded |
