EC-8850 Conductivity Controller
Panel instrument for on-line monitoring of industrial process conductivity.
View Details
EC-1800 industrial online conductivity/resistivity measurement and control instrument, integrated ARM MCU chip, signal measurement in the way of software automatic real-time tracking, to achieve the intelligent instrument, so that the measurement accuracy and stability are further improved.
The meter can be adapted to a variety of conductivity electrodes: 0.01, 0.02, 0.1, 1.0, 10.0cm-1 conductivity electrodes, measuring range from 18.25 MΩ (0.05 us) to 100 mS (temperature compensation using NTC10K, can achieve 0-120℃ temperature measurement).
The instrument is widely used in water treatment equipment, environmental engineering, pharmaceutical, electronics, chemical, agricultural planting, aquaculture, scientific research institutes, electroplating, metallurgical manufacturing, machining and other industries.
| Model | EC-1800 |
|---|---|

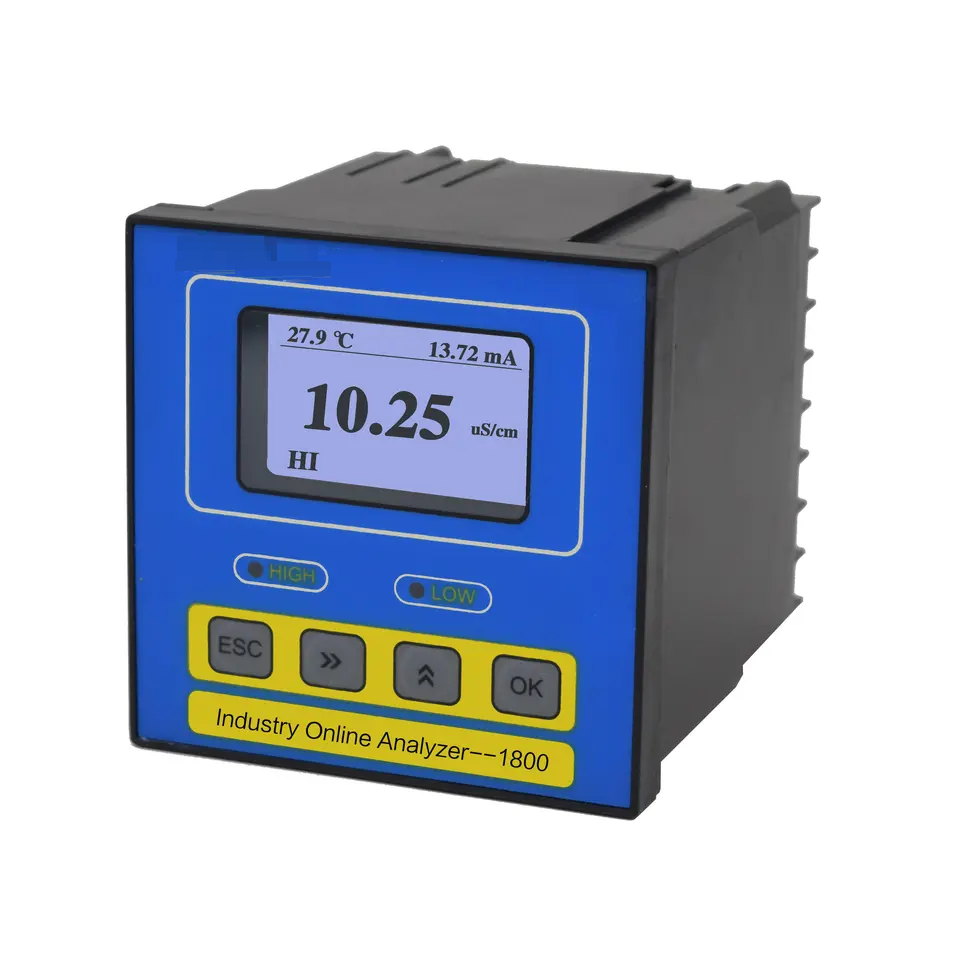

| Name | EC-1800 Conductivity/Resistivity Controller |
| Measuring Range | Conductivity: 0-200uS/cm to 0-200mS/cm; Resistivity: 0~18.25MΩ |
| Displaying Mode | 128*64 LCD Screen |
| Accuracy | 1.0% (FS) |
| Current Output Signal | 4-20mA, optional: RS485 |
| Control Output Signals | High/Low limit dual relay control |
| Working Condition | Ambient temp: 0～50℃, Relative humidity ≤85% |
| Power Supply | AC 220V or DC24V |
| Power Consumption | ≤3W |
| Outline Dimension | 96×96×110mm (H×W×D) |
| Hole Size | 92×92mm (H×W) |
